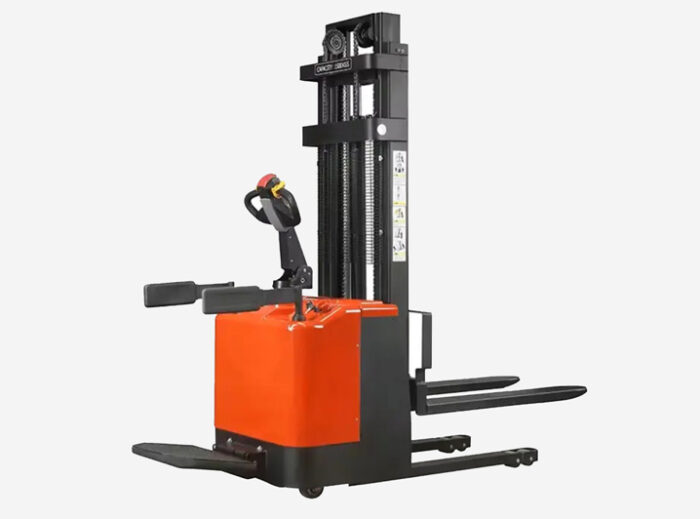

Stand-on electric stacker

  • Load capacity: 1500kg
  • Lifting height: 1.6m-5m
  • Fork dimension: 1150*160*65mm
  • Drive unit: standing-on full electric

Share

Introduction

Stand-on electric pallet stackers are designed to optimize storage and retrieval operations in various settings, from warehouses to manufacturing facilities. These versatile machines offer a range of load capacities and lifting heights to accommodate diverse material handling needs. It is a storage equipment which is powered by batteries, lifted by a hydraulic workstation, centrally controlled by a joystick, standing driving type for loading and unloading, stacking, and short-distance transportation of palletized goods.

Application

  • Warehousing and Distribution Centers: Efficiently move and store pallets.
  • Manufacturing Facilities: Transport raw materials and finished goods.
  • Retail Stores: Handle merchandise and inventory.
  • Logistics and Transportation: Load and unload trucks and containers.

Feature

  • Robust Fork Design: Capable of handling heavy-duty loads with ease.
  • Enhanced Durability: Reinforced with steel bars for added strength and rigidity.
  • Premium Chain: High-quality chain for reliable and smooth operation.
  • Heavy-Duty Construction: Utilizes 10# channel steel for exceptional strength and durability.
  • Powerful Hydraulic System: Solid piston cylinder ensures reliable and efficient lifting.
  • Flexible Operation: Dual-control system for both hands and feet, allowing for versatile use.
  • Superior Corrosion Resistance: Shot blasting treatment provides thorough rust removal and protection.
  • Adjustable Fork: Adapts to various load sizes and configurations.

Parameter

Product name
High Quality Stand-on Full Electric Stacker Truck
Model
Unit
CTD10
CTD15
CTD20
Load Capacity
kg
1000 kg
1500 kg
2000 kg
Max. lifting heihgt
mm
1600/2500/3150
1600/2500/3150
1600/2500
Mast closed Height
mm
2180/1860/2180
2180/1860/2180
2180/1860/2180
Ground clearance
mm
85
85
85
Fork length
mm
1000
1000
1000
Wheel Type
PU
PU
PU
Travelling speed
Km/h
4/6
4/6
4/6
Lifting speed
mm/s
80
80
80
Overall width
mm
850
850
850
Net Weight
kg
710-960

Part Detail

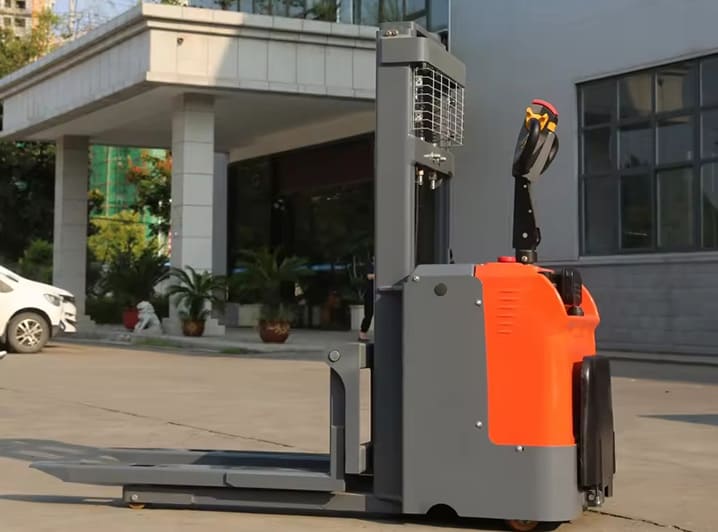

Stand-on full electric pallet stacker
