Introduction of Cralwer Scissor Lifts
Cralwer Scissor Lifts are designed to excel in the toughest conditions. By utilizing advanced crawler technology, these lifts can effortlessly navigate uneven terrain, muddy surfaces, and steep inclines.
- Superior Traction: The innovative crawler system provides exceptional grip, ensuring safe and reliable operation.
- Enhanced Stability: The large contact area between the crawler tracks and the ground minimizes ground pressure and prevents sinking.
- Precise Control: Smooth and precise movement, even on challenging surfaces.
- Durable Construction: Built to withstand harsh environments and heavy-duty use.
- Versatile Applications: Ideal for construction, maintenance, and industrial tasks.
Application of Cralwer Scissor Lifts
Mobile scissor lift platforms are widely used for indoor and outdoor mechanical installation, equipment maintenance, and building maintenance in stations, docks, bridges, halls, factories, and other areas. In addition, it is often used for lifting and loading and unloading goods between production lines, logistics industries, basements and floors, as well as lifting stages, lifting operation platforms, etc
Features
Conquer Any Terrain with Our Crawler Scissor Lift
Our crawler scissor lift is designed to tackle the toughest job sites. With its powerful crawler tracks and electric-hydraulic drive system, it offers unmatched versatility and performance.
Key Features:
- All-Terrain Capability: Easily navigate rough terrain, muddy surfaces, and steep inclines.
- Self-Propelled Operation: Conveniently move the lift to different work areas without external power sources.
- Stable Platform: The weighted chassis ensures stability, eliminating the need for outriggers.
- Efficient Workflows: The ability to walk slowly with the platform raised optimizes productivity.
- Reliable and Durable: Built to withstand demanding conditions and provide long-lasting performance.
Parameter
| Model | GTJZ046ZS | GTJZ0608LD | GTJZ0810LD | GTJZ1012LD | GTJZ1214LD |
| Capacity(kg) | 200 | 450 | 450 | 320 | 320 |
| Extension capacity(kg) | 100 | 113 | 113 | 113 | 113 |
| Workers | 1 | 2 | 2 | 2 | 2 |
| Working height(m) | 6.5 | 8 | 10 | 12 | 14 |
| Platform height(m) | 4.5 | 6 | 8 | 9.75 | 11.75 |
| Overall length (with ladder) (mm) | 1270 | 2470 | 2470 | 2470 | 2470 |
| Overall width(mm) | 790 | 1390 | 1390 | 1390 | 1390 |
| Overall height(mm) | 1820 | 2280 | 2400 | 2530 | 2670 |
| Platform size(mm) | 1230*655 | 2270*1120 | 2270*1120 | 2270*1120 | 2270*1120 |
| Platform extension(mm) | 550 | 900 | 900 | 900 | 900 |
| Turning radius(m) | 0 | 0 | 0 | 0 | 0 |
| Minimum ground clearance(mm) | 50 | 150 | 150 | 150 | 150 |
| Lifting motor(V/KW) | 24/1.2 | 48/4 | 48/4 | 48/4 | 48/4 |
| Travelling motor | 2*24V/1.5KW | 2*48V/4KW | 2*48V/4KW | 2*48V/4KW | 2*48V/4KW |
| Travel Speed(km/h) | 1.7 | 2.4 | 2.4 | 2.4 | 2.4 |
| Charger (V/A) | 48/25 | 48/25 | 48/25 | 48/25 | 48/25 |
| Weight (kg) | 790 | 2400 | 2550 | 2840 | 3000 |
Part Detail

Quick connection plug

Electric system

Industrial Track

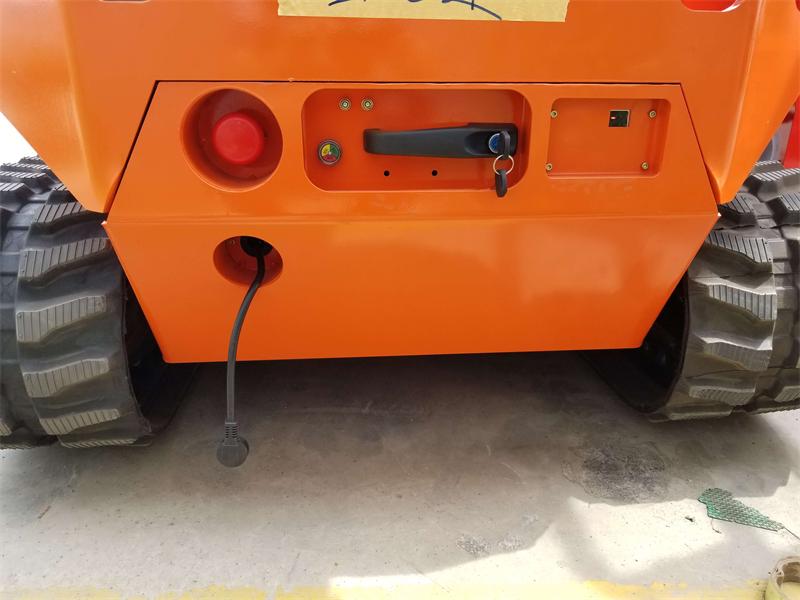

Emergency stop and charger plug

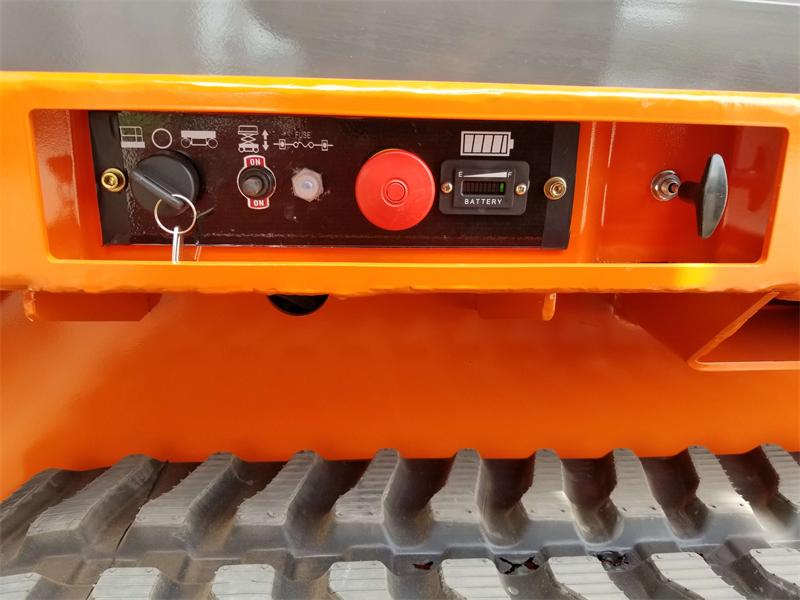

Battery Indicator and Key for Operation

PCU handle: The device uses PCU handle to control lifting and walking
