Introduction

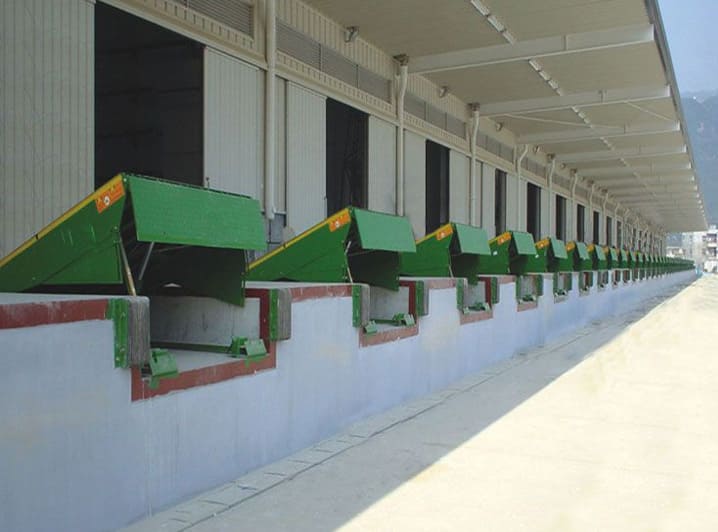

Dock leveler is specialized equipment designed to bridge the height gap between loading docks and truck beds. By adjusting its height, it ensures a smooth transition for loading and unloading operations, improving efficiency and safety. The leveler’s movable bridge plate can be raised or lowered to match the truck’s bed height, and its front end features a lip that automatically aligns with the truck’s edge, creating a seamless surface.
Usage
Dock levelers find widespread application in various settings, including terminals, platforms, and warehouses. Their versatility allows them to accommodate diverse user needs.
Features
- Enhanced Safety: The textured steel plate surface of the unloading platform provides excellent anti-slip properties, reducing the risk of accidents during vehicle operations.
- Comprehensive Safety Measures: Side guardrails and maintenance support rods are incorporated to further safeguard operators.
- Flexible Adaptability: The adjustable end plate and angle mechanism facilitate easy connection with trucks of varying heights.
- Optimized Operation: The hydraulic system, powered by an advanced integral modular hydraulic station, ensures smooth, quiet, and leak-free performance.
- Simplified Control: A single operating button controls the entire movement of the bridge plate, streamlining the process.
Parameter
Model | Load capacity | Platform Size | Lip | Power | Pit Dimension |
DCQG6-0.6 | 6ton | 2000*2500mm | 400mm | 0.75kw | 2080*2540*600mm |
DCQG8-0.8 | 8ton | 2000*2500mm | 400mm | 0.75kw | 2080*2540*600mm |
DCQG10-0.6 | 10ton | 2000*2500mm | 400mm | 0.75kw | 2080*2540*600mm |
DCQG12-0.6 | 12ton | 2000*2500mm | 400mm | 0.75kw | 2080*2540*600mm |
Part Detail
Side skirts: Adding side skirts to the equipment to better protect internal devices and circuits
Motor: 0.75kw motor, dedicated hydraulic pump station for boarding bridge
Pipe material: Made of Q500 manganese steel, sturdy and flexible
Control box: A control box that uses jog control. When the button is released, the tabletop automatically descends, effectively protecting the tabletop and hydraulic system
Anti slip countertop: 6mm patterned board, electrostatic spray coating, increases friction, and provides a more secure use
Hydraulic cylinder: The product cylinder has stable operation, large workload, stability and wear resistance
