Diesel Articulating Boom Lifts

Capacity: 230~480kg/507~1058 pounds (lbs)

Platform height: 14.7~45.5m/ 48.2~149.3 feet (ft)

Working radius: 16.7~47.5m/54.8~155.8 feet (ft)

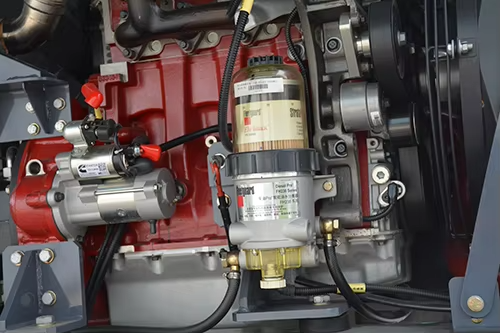

Power source: Diesel engine

Reference Price Range: $39510 – 83590

Leave a message

Introduction

Articulating boom lift is a flexible alternative to traditional vertical or scissor lift platforms. Powered by a diesel engine with electric start, it offers self-supporting capabilities for elevated work. With its 360-degree rotation and obstacle-crossing abilities, maintenance teams can work efficiently and safely, saving time and effort.

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.

Application

Urban management: used for various high-altitude operations in urban management work.
Electricity: Conduct maintenance and repair of power lines.
Streetlights: Maintain and repair streetlights.
Advertising: Install and maintain billboards.
Communication: Maintain communication equipment.
Landscape: carry out garden pruning and maintenance.
Transportation: Maintenance of transportation facilities.
Dock: Various high-altitude operations in ports and docks.
Airport Port: Requirements for high-altitude operations at airport ports.
Large industrial and mining companies: various high-altitude operation needs of industrial and mining enterprises

Advantage

Our articulating boom lift offers a spacious 4-meter platform for easy tool and material transport.

Equipped with a small fly jib, it can navigate obstacles and extend its reach.

The dual load control system ensures optimal performance for various loads.

Its compact Σ-shaped boom provides flexibility and maneuverability, while the 160-degree platform rotation expands the working area.

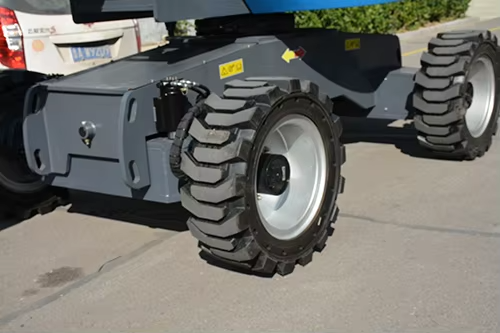

Built for rugged terrains, the 4WD chassis, wide tires, and powerful engine deliver exceptional off-road capabilities.

The extendable work platform and foldable fence enhance convenience and transportability.

Advanced safety features, including tilt protection, overload warning, and emergency lowering, ensure operator safety.

Parameter

16-28m Diesel Articulating Boom Lifts

Model	GTBZ16J	GTBZ18J	GTBZ20J	GTBZ22J	GTBZ26J	GTBZ28J
Max. Working Height(m)	16.7	18	20.2	22	26.2	28
Max. Platform Height(m)	14.7	16	18.2	20	24.2	26
Max. Lift Capacity(kg)	230	230	230	230	230	230
Max. Horizontal Outreach(m)	8.1	9.55	11.6	12	15.4	17.28
Stowed Length(m)	6.72	7.26	8.23	8.54	10.65	11.7
Stowed Width(m)	2.28	2.28	2.38	2.38	2.48	2.58
Stowed Height(m)	2.47	2.4	2.5	2.55	2.85	2.97
Platform Size	1.83×0.76	1.83×0.76	1.83×0.76	1.83×0.76	2.44×0.91	2.44×0.91
Wheel base	2.4	2.4	2.4	2.4	3	3
Drive speed stowed(km/h)	4.2	4.2	4.2	4.2	4.2	4.2
Gradea bility	45%	45%	45%	45%	45%	40%
Engine Power(kw)	≈36kw@2400rpm					≈36kw@2500rpm
Fuel tank capacity(L)	100	100	100	100	100	110
Weight(kg)	7500	7800	8800	9380	15870	17000

32-47m Diesel Articulating Boom Lifts

Model	GTBZ32J	GTBZ40J	GTBZ47J
Max. Working Height(m)	32	40.1	47.5
Max. Platform Height(m)	30	38.1	45.5
Max. Lift Capacity(kg)	480	480	480
Max. Horizontal Outreach(m)	20.2	21.6	23
Platform Size	2.44×0.91	2.44×0.91	2.44×0.91
Wheel base	3.66	3.96	5.6
Drive speed stowed(km/h)	4.4	4.4	4.4
Gradea bility	40%	40%	40%
Engine Power(kw)	≈54kw@2400rpm	≈54kw@2400rpm	≈81kw@2400rpm
Fuel tank capacity(L)	151	151	200
Weight(kg)	18000	24500	26500
